Leversets

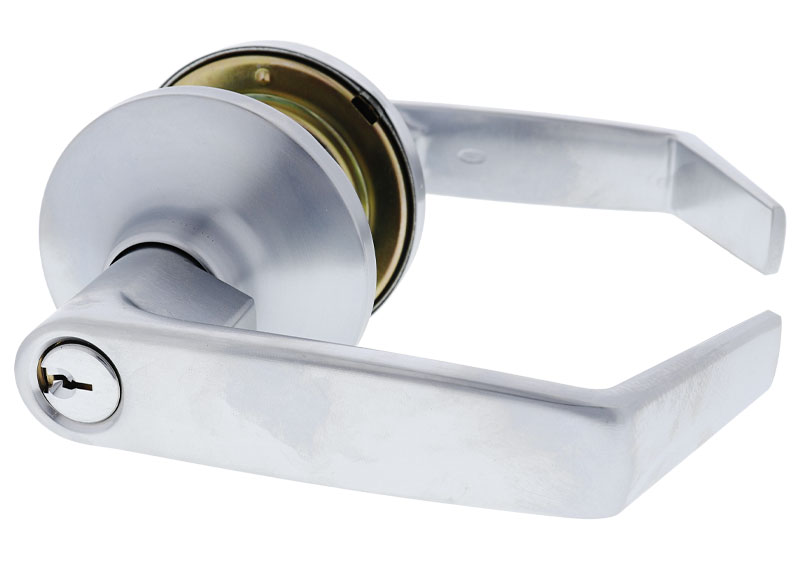

The Carbine Ascot series contains high grade commercial leverset models with a strong handle spring that will perform. Available in a tiebolt mechanism with similar in appearance to the Carbine Rosehill series, its primary difference is it offers concealed fixing. It also has a stronger handle spring and a slightly longer lever handle.

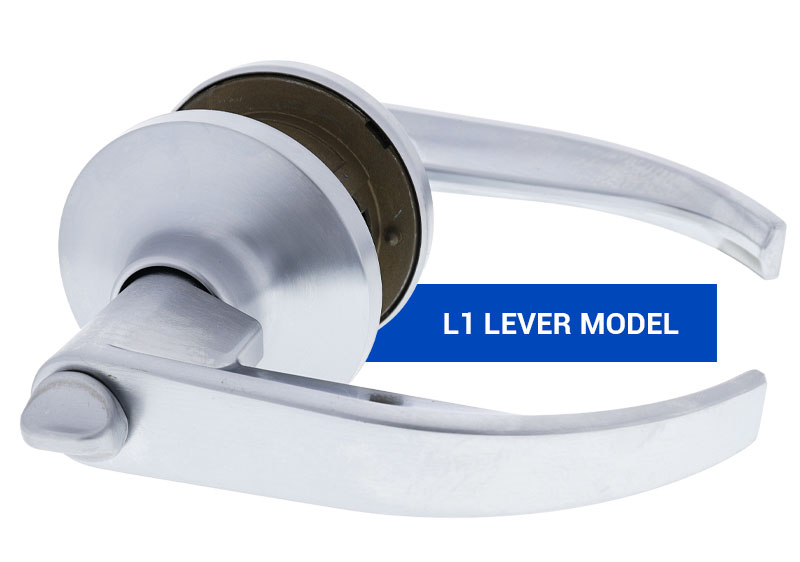

EN L1 Lever model is only available in satin chrome finish.
Leversets
The Carbine Ascot series contains high grade commercial leverset models with a strong handle spring that will perform. Available in a tiebolt mechanism with similar in appearance to the Carbine Rosehill series, its primary difference is it offers concealed fixing. It also has a stronger handle spring and a slightly longer lever handle.
EN: Entrance Set • PR: Privacy Set • PS: Passage Set • VE: Vestibule Set • CL: Classroom Set • LA: Latching Halfset • DC: Double Cylinder Set
EN L1 Lever Model is only available in satin chrome finish
Slide to view more
Slide to view more
| Code | Description | Function | Finish | Keying | Backset | Type | Packaging |
|---|---|---|---|---|---|---|---|
| PA8000 | Ascot Entrance Set | Entrance | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Trade Pack | |
| PA8000-L1 | Ascot Entrance Set L1 Lever | Entrance | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Disability Lever | Trade Pack |
| PA8011 | Ascot Double Cylinder Set | Double Cylinder | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Trade Pack | |
| PA8012 | Ascot Classroom Set | Classroom | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Trade Pack | |
| PA8012-L1 | Ascot Classroom Set L1 Lever | Classroom | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Disability Lever | Trade Pack |
| PA8030 | Ascot Privacy Set | Privacy | Satin Chrome | Adjustable 60mm-70mm | Trade Pack | ||
| PA8030-L1 | Ascot Privacy Set L1 Lever | Privacy | Satin Chrome | Adjustable 60mm-70mm | Disability Lever | Trade Pack | |
| PA8062 | Ascot Vestibule Set | Vestibule | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Trade Pack | |
| PA8062-L1 | Ascot Vestibule Set L1 Lever | Vestibule | Satin Chrome | Keyed to Differ | Adjustable 60mm-70mm | Disability Lever | Trade Pack |
| PA8082 | Ascot Passage Set | Passage | Satin Chrome | Adjustable 60mm-70mm | Trade Pack | ||
| PA8082-L1 | Ascot Passage Set L1 Lever | Passage | Satin Chrome | Adjustable 60mm-70mm | Disability Lever | Trade Pack | |
| PA8085 | Ascot Half Set | Half Cupboard latch | Satin Chrome | Adjustable 60mm-70mm | Trade Pack | ||
| PA8100 | Ascot Entrance Set | Entrance | Polished Brass | Keyed to Differ | Adjustable 60mm-70mm | Trade Pack |
Entrance Set
Opened by lever when unlocked.
Key locks & unlocks both levers but does not retract the latch.
Inside function
Opened by lever at all times.
Operating internal lever in locked position will release outside lever. Internal turnsnib locks and unlocks exterior lever.
Privacy Set
Opened by lever when unlocked.
Has an emergency slot in the external handle that unlocks both levers but does not retract the latch.
Inside function
Opened by lever when unlocked.
Internal turnsnib locks or unlocks both levers.
Passage Set
Opened by lever at all times.
Inside function
Opened by lever at all times.
Vestibule Set
Opened by key only.
The outside lever always remains rigid.
Inside function
Opened by lever at all times.
Classroom Set
Opened by lever when unlocked.
Key locks or unlocks outside lever but does not retract the latch.
Inside function
Opened by lever at all times.
Latching Halfset
No function with a blank rose supplied.
Inside function
Opened by lever at all times.
Double Cylinder Set
Opened by lever when unlocked.
Key locks or unlocks both levers but does not retract the latch.
Inside function
Opened by lever when unlocked.
Key locks or unlocks both levers but does not retract the latch.
Carbine
Leverset
Superior quality commercial & residential grade with various functions available.
Innovation in lock design
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
