Carbine - Padlocks

Carbine C45 Padlocks are suitable for general applications and light commercial use. Ideal for securing gates, cabinets, mailboxes, utility rooms and storerooms.

C45 PRODUCT SPECS

45mm bodies with 6.35mm or 8mm molybdenum alloy shackle

Reversible cam

7.93mm double ball locking

Extended shackle models

Standard function of snap shut

Can be converted to key retained

6 pin R48 cylinder LKW5 (C4)

Brass, steel & stainless models

Discover

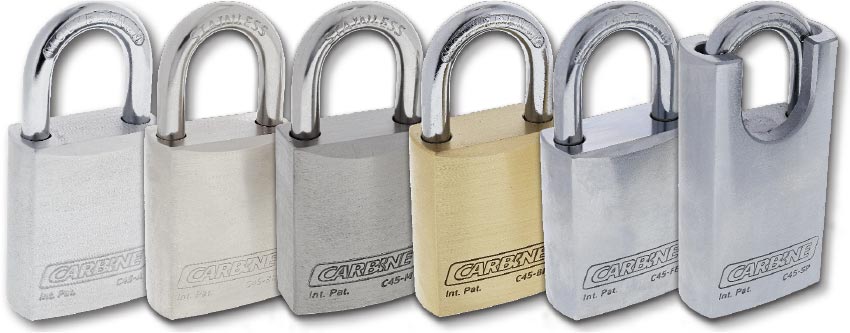

C45 Padlocks

C45 Brass

Brass body with brushed brass finish

Security:3.5 out of 5 stars (3.5 / 5)
Endurance:4 out of 5 stars (4.0 / 5)
Weather Resistance:4.5 out of 5 stars (4.5 / 5)

  • 8mm molybdenum alloy shackle
  • Shackle hardened to 60HRC
  • Shackles duplex nickel & chrome plated
  • Non anti drill cylinder
  • Additional model available with smaller 6.35mm diameter molybdenum shackle for tight fit applications

C45 Nickel Plated

Nickel plated body and stainless steel shackle for extra weather resistance.

Security:3.5 out of 5 stars (3.5 / 5)
Endurance:4 out of 5 stars (4.0 / 5)
Weather Resistance:4.5 out of 5 stars (4.5 / 5)

  • Choice of 8mm molybdenum alloy shackle or 8mm stainless steel shackle
  • Shackle hardened to 60HRC
  • Non anti drill cylinder
  • Weather resistant nickel plated finish
  • Stainless steel double ball locking

C45 Stainless Steel

Stainless steel body with brushed nickel chrome finish

Security:3.5 out of 5 stars (3.5 / 5)
Endurance:4.5 out of 5 stars (4.5 / 5)
Weather Resistance:5 out of 5 stars (5.0 / 5)

  • 8mm stainless steel shackle
  • Non anti drill cylinder

C45 Steel

Hardened steel body with brushed chrome finish

Security:4 out of 5 stars (4.0 / 5)
Endurance:4.5 out of 5 stars (4.5 / 5)
Weather Resistance:4 out of 5 stars (4.0 / 5)

  • 8mm molybdenum alloy shackle
  • Anti drill cylinder
  • Shackle hardened to 60HRC
  • Shackles duplex nickel & chrome plated

C45 Steel Shackle Protected

Hardened steel body with brushed chrome finish

Security:4 out of 5 stars (4.0 / 5)
Endurance:4.5 out of 5 stars (4.5 / 5)
Weather Resistance:4 out of 5 stars (4.0 / 5)

  • 8mm molybdenum alloy shackle
  • Anti drill cylinder
  • Shackle hardened to 60HRC
  • Shackles duplex nickel & chrome plated

C45 Aluminium

Hardened steel body with aluminium finish.

Security:3.5 out of 5 stars (3.5 / 5)
Endurance:4 out of 5 stars (4.0 / 5)
Weather Resistance:4.5 out of 5 stars (4.5 / 5)

  • 8mm molybdenum alloy shackle
  • Anti drill cylinder
  • Shackle hardened to 60HRC
  • Shackles duplex nickel & chrome plated

Accessories Option

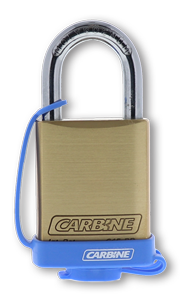

C45 Weather Shield Protection

Available for the C45 series the weather shield will protect the key way from sand, salt water and dust.

Shackle chain collar – ID 8.1mm OD 15mm

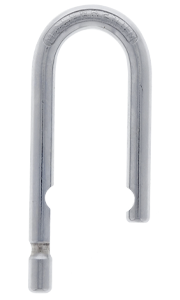

Shackle Option

C45 optional shackle options

Carbine offers our locksmiths the ability to stock a variety of shackle lengths to support any application.

  • 30mm
  • 50mm
  • 75mm
  • 100mm

C50

Residential / Medium Commercial Grade Security

C60

High Commercial Grade Security

C70

High Commercial Grade Security

C73

High Commercial Grade Security
